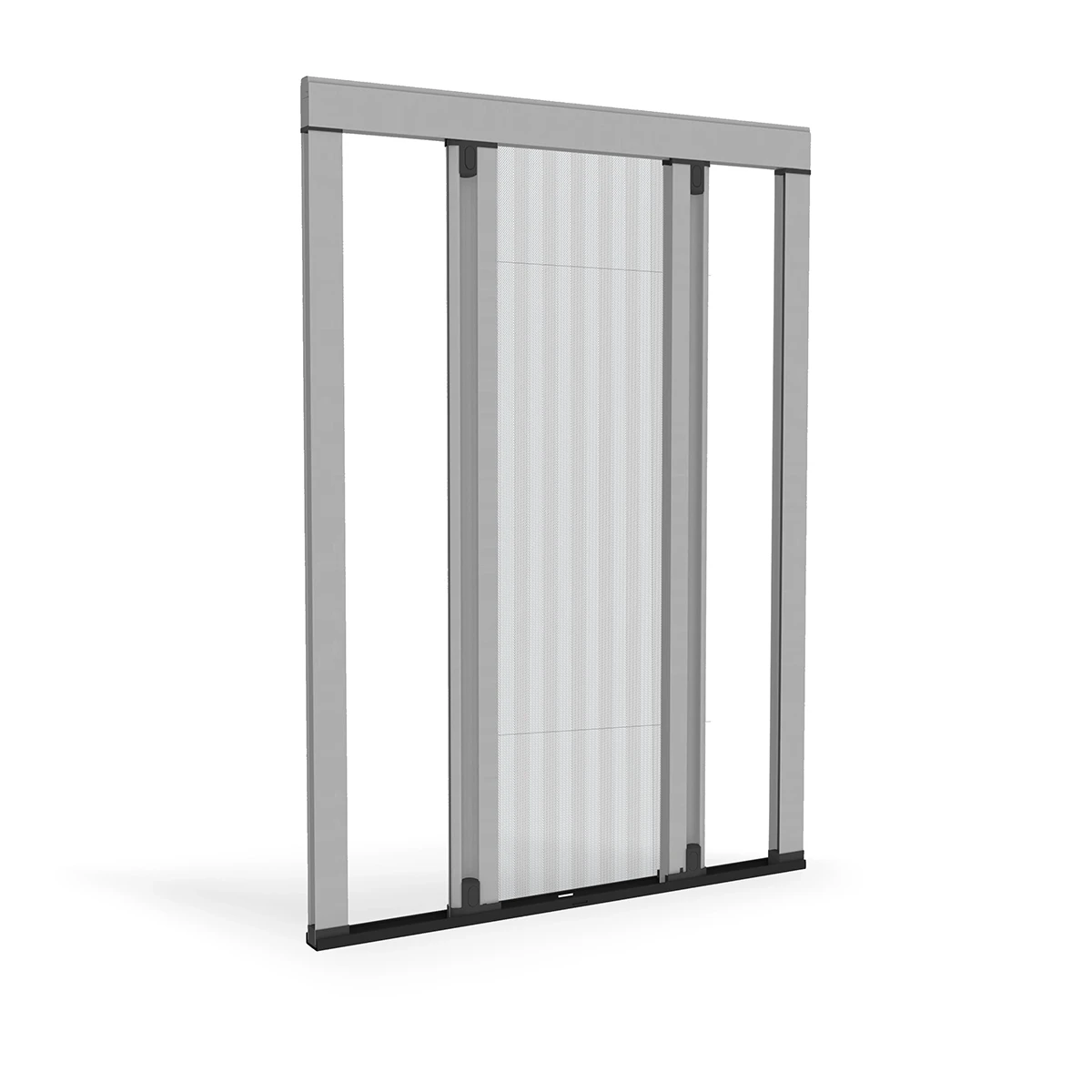

Colomba Reverse L

Discover Colomba Reverse, the pleated Flyscreen with reversible mesh package, controlled side-opening, and reduced footprint of just 18 mm.

STANDARD FEATURES

Black pleated mesh with a 15 mm fold

Ground guide with double-sided tape and drainage hole

Height out-of-square compensation up to 9 mm

Minimal bulk 22 mm

Operation – Controlled side opening

Installation – In opening, compatible recess

Recommended for – French window, large sizes

Colomba Reverse is a side-opening and controlled pleated Flyscreen with reversible net package. In this way the handle bar can be stopped in any position. The small size of just 18 mm ensures the possibility to install the Flyscreen even in rooms with limited spaces. Colomba Reverse is also available in the Colomba Multiverse version with two reversible net packages.

Linea

Pleated Line

Fixed Upper Guide 22 mm

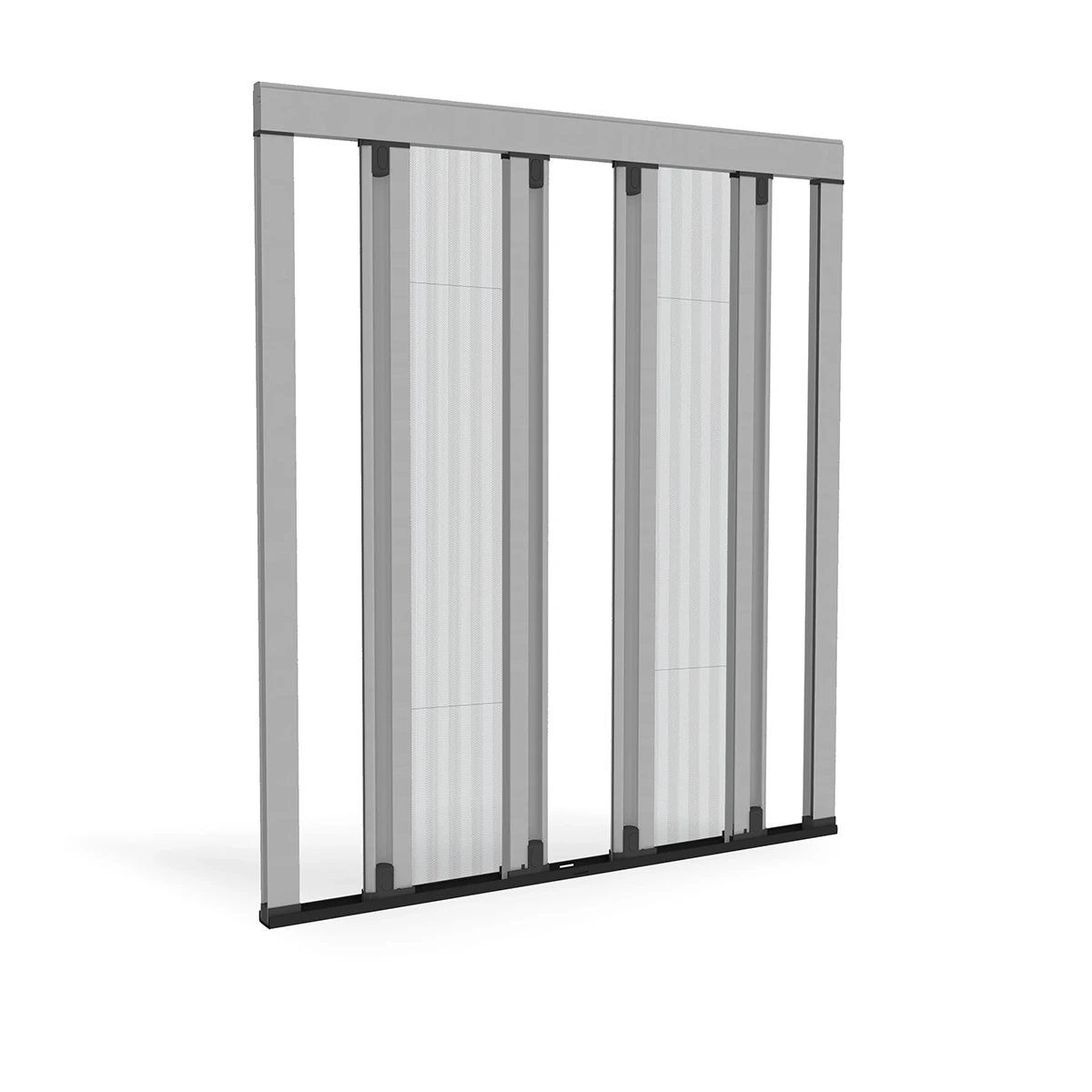

COLOMBA MULTIVERSE

RAL aluminium

White 9010

Matte White 9010

Ivory 1013

Brown 8017

Grey 7001

Matte Black 9005

Anthracite Grey 7016

Matte Green 6005

Special RAL aluminium

Painted Silver 9006

Painted Bronze

Dark Painted Bronze

Painted Testa di moro

Details

Soft White 9010

Grey Mix

Green Mix

Brown Mix

Copper Brown

Wood

Walnut 360-70R

Walnut 102-70R

Natural Dark Walnut

Rough Cherry

Natural Cherry

Chestnut 378-70R

Striped Douglas

White Renolit

Dark Renolit

White Renolit

Plastics

Bianco (di serie su alluminio 9010)

Grey

Black

Nets and Fabrics

Pleated

Black

Pleated

Grey

Blackout Pleated

White

Blackout Pleated

Grey

Blackout Pleated

Ivory

Blackout Pleated

Dark Brown

Blackout Pleated

Brown

Filtering Pleated

White

Filtering Pleated

Grey

Filtering Pleated

Stone Grey

Footprint

RECOMMENDED DIMENSIONS (mm)
L/min H/min L/max H/max
Colomba Reverse 400 500 3000 3000
Colomba Multiverse 800 500 6000 3000

Dimensions must be provided in mm, indicating width (L) for height (H) and type of measurement provided.
FINISHED SIZE: the flyscreen will have the provided dimensions
DAYLIGHT MEASUREMENT: in relation to the provided measurements, the flyscreen will have the following dimensions: W – 2 mm / H – 2 mm

THE FLYSCREEN IS SUPPLIED ALREADY ADJUSTED
