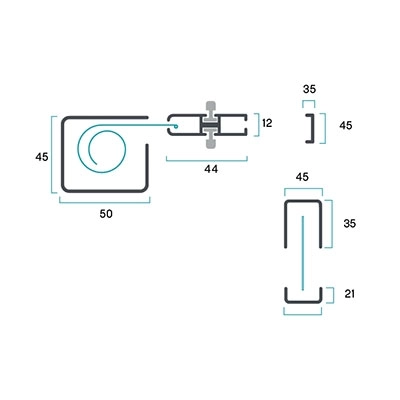

RECOMMENDED DIMENSIONS (mm)
|
L/min |
H/min |
L/max |
H/max |
Lapus |
400 |
500 |
1500 |
2600 |
Lapus Double |
800 |
500 |
3000 |
2600 |
For double door versions, ensure each door complies with the recommended dimensions for a single door.
Any off-center opening must be communicated at the time of order. By default, the flyscreen will be made with the box on the left (interior view).
Dimensions must be provided in mm, indicating width (W) by height (H) and the type of measurement provided.
FINISHED SIZE: the flyscreen will have the provided dimensions.
FINISHED SIZE: the flyscreen will have the provided dimensions.
FOR NON-PREARRANGED SPACES
Lapus A: W+87 mm / H + 35 mm
Lapus Full Duo: W+82 / H daylight opening size
Lapus Full 51 (3 sides): W+82 / H + 41 mm
Lapus Full 51 (3 sides): W+82 / H + 41 mm
FOR SPACES PREARRANGED WITH A CATALOG KIT
Lapus A for Duo kit: W+69 / H daylight opening size
Lapus A for 51 kit (3 sides): W+69 / H + 35 mm
Lapus A for Ghost kit: W+69 / H + 35 mm
IN OTHER CASES, PROVIDE THE FINISHED SIZE
If you wish to install the flyscreen in a prearranged space,
specify this when ordering, indicating the installed built-in kit.
