Discover Oltre V, the ultra-resistant anti-wind and anti-intrusion flyscreen
Ultranet gray mesh for superior resistance
Anti-wind zipper welded with PVC insert
Anti-crease springs
Self-supporting and quick installation
Operation – Winch or motor
Installation – Recessed, compatible flush mount
Recommended for – Large openings

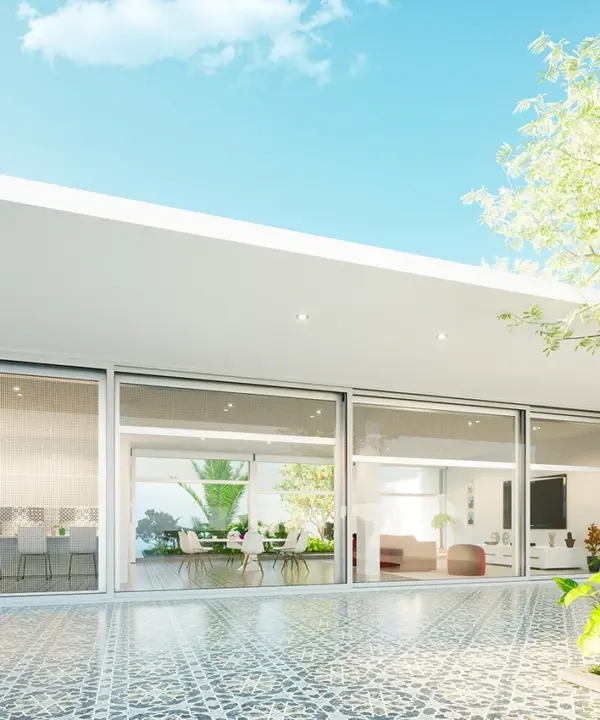

Oltre V is a vertical rolling flyscreen with an ultra-resistant, anti-wind, and anti-intrusion zip system. Oltre® is a line of protection systems for large openings with an anti-wind zipper. Oltre V is a vertical rolling protection system particularly suitable for large spaces, pergolas, or verandas. It allows the choice of screening system: anti-insect net, blackout or filtering fabric, Cristal fabric, and the type of operation: winch or motor.
| Linea | Zip Line |
|---|
RAL aluminium
White 9010
Special RAL aluminium
Details
Wood
Plastics
Nets and Fabrics
Footprint
| L/min | H/min | L/max | H/max | |
|---|---|---|---|---|
| OLTRE V 83 WINCH | 600 | 700 | 2800 | 2400 |
| OLTRE V 83 MOTOR | 670 | 700 | 2800 | 2400 |
| OLTRE V 103 WINCH | 600 | 700 | 4500 | 3000 |
| OLTRE V 103 MOTOR | 820 | 700 | 4500 | 3000 |
Dimensions must be provided in mm, indicating width (L) for height (H) and type of measurement provided.
FINISHED SIZE: the flyscreen will have the provided dimensions
DAYLIGHT MEASUREMENT: in relation to the provided measurements, the mosquito net will have the following dimensions: W – 4 mm / H – 4 mm
Always specify the type of motor.
Specify the side of the motor or winch installation.
In the absence of information, the installation side will be the right side (from inside view).
